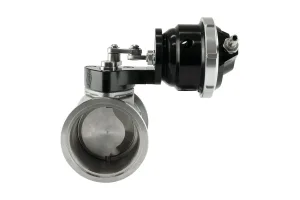

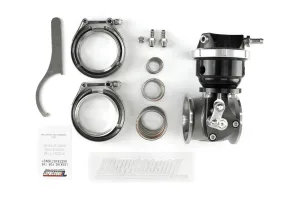

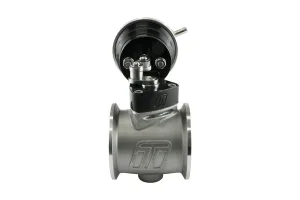

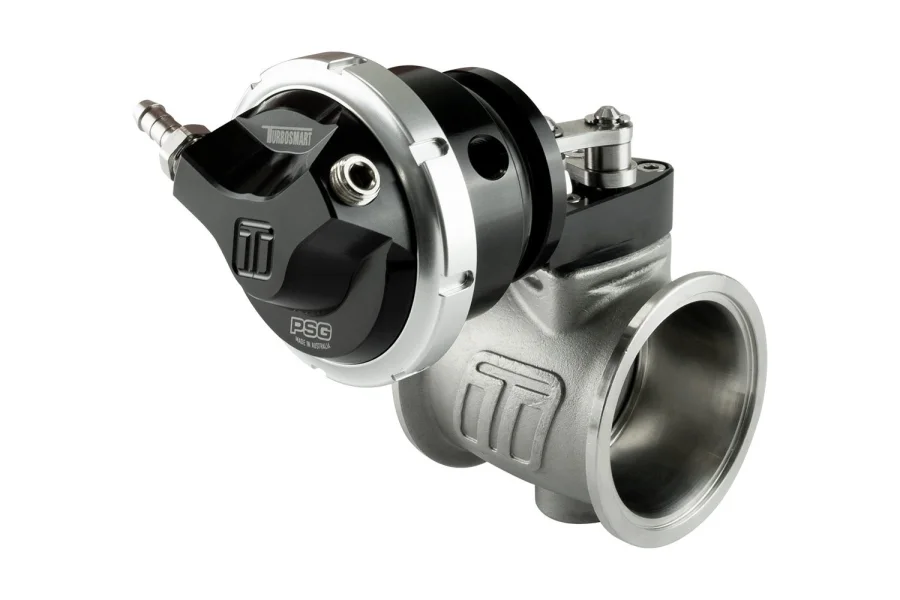

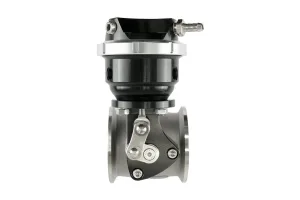

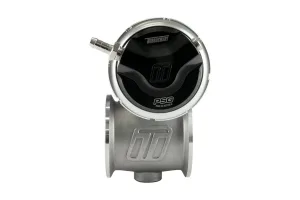

PSG50 Pneumatic Straight Gate 6psi Black

The StraightGate50 from Turbosmart is the world's highest-flowing 50mm external wastegate! The StraightGate50 is a zero-offset butterfly-style wastegate that allows enormous flow and almost linear control, and unparalleled boost control throughout the entire operating range.




The Boost-Based Pneumatic StraightGate50 takes the Multiple Award Winning eSG50 and simplifies control via a traditional boost-based actuator. The Self-Balancing nature of the StraightGate50 means a huge tuning window of over 5 times base spring pressure can be obtained! Pre-fitted with 6 psi springs to the GenV actuator featuring both single & Twin port control, the StraightGate50 is simple to use, and packed with performance, flow and features!




The Turbosmart StraightGate50 has been designed from the ground up & validated in-house to create a new level of control and flow, never seen in a wastegate before. The zero-offset butterfly valve is subjected to exhaust drive pressure equally on both halves of the valve, which pivots centrally, resulting in a self-balanced valve against any drive pressure. This self-balancing means less work is required to act against even the highest drive pressures, and a wider tuning window is possible, no matter how the valve is actuated. The increased flow is achieved through the efficiency of a straight-through valve versus a poppet-style valve where the exhaust gas must be turned 90 degrees by the valve.




Available in


Electronic eSG50 StraightGate50


Pneumatic (Boost-Based) pSG50 StraightGate50


Pneumatic (Vacuum-Based) pSG50v StraightGate50




Features


50mm (1.97in) Butterfly Style Zero-Offset Valve


383.9 CFM / 10.87m3 per minute flow


Stainless Steel (630) Butterfly and shaft


Stainless Steel (347) Main Body


Stainless Steel (Heat Treated 431) V-Band Clamps


Aluminium (6262 T6 Anodised) Bracket & Actuator


Turbosmart unique Locking Collar Ring


Base Spring Options from 6psi to 42psi


Suitable for Single or Twin Port Boost-Based Control


Stainless Steel (N60) Linkages and Control Arm

Référence	TS-0565-1762
Code EAN	9329677026573
Marque	Turbosmart
Famille	Wastegates externes
Poids colis	2,03 kg
Dimensions colis	220 × 170 × 140 mm
Délai d'approvisionnement	21 jours
Taux de TVA	20 %

Les compatibilités de cette référence ne sont pas encore renseignées. Elle n'est pas universelle pour autant : appelez le Lab pour faire vérifier qu'elle convient à votre voiture.

Aucune référence d'origine n'est encore rattachée à cette pièce. Si vous avez l'ancienne pièce en main, envoyez sa référence à sales@urban-racing.fr, le Lab confirme l'équivalence.
