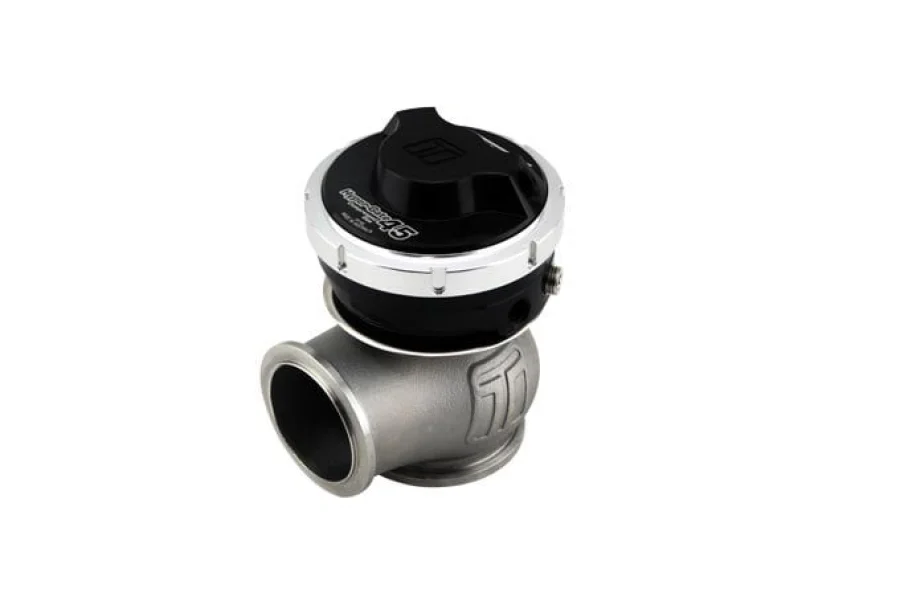

GenV WG45CG HyperGate45 5psi Compressed Gas Black

The GenV HyperGate45 Compressed Gas external wastegate is a cost-effective, high-performing external wastegate designed for control strategies that actively bias the top chamber with high pressure for large boost bandwidth operation, such as CO2 drag racing or compressed air WRC applications.




The Compressed Gas range features an inverted diaphragm to maximize diaphragm life from high-pressure CO2 or compressed air systems.




The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.


The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate.


A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.




Available In


Black, Blue


Wastegate Position Sensor Version and Upgrade




Features


Class Leading, Thermal Performance


Class Leading, CFD, and Validated Flow Performance


Class Leading Fatigue Resistance


Nitronic 60 Valve Guide and High Temp 347 SS Body


17/7 PH Stainless Steel Springs


Liquid Actuator Cooling Option


Strap Type V-band clamps


User Adjustable Actuator Position


Modular Design for Actuator Interchangeability

Référence	TS-0553-1202
Code EAN	9329677018820
Marque	Turbosmart
Famille	Wastegates externes
Poids colis	1,66 kg
Dimensions colis	190 × 130 × 150 mm
Délai d'approvisionnement	21 jours
Taux de TVA	20 %

Les compatibilités de cette référence ne sont pas encore renseignées. Elle n'est pas universelle pour autant : appelez le Lab pour faire vérifier qu'elle convient à votre voiture.

Aucune référence d'origine n'est encore rattachée à cette pièce. Si vous avez l'ancienne pièce en main, envoyez sa référence à sales@urban-racing.fr, le Lab confirme l'équivalence.
