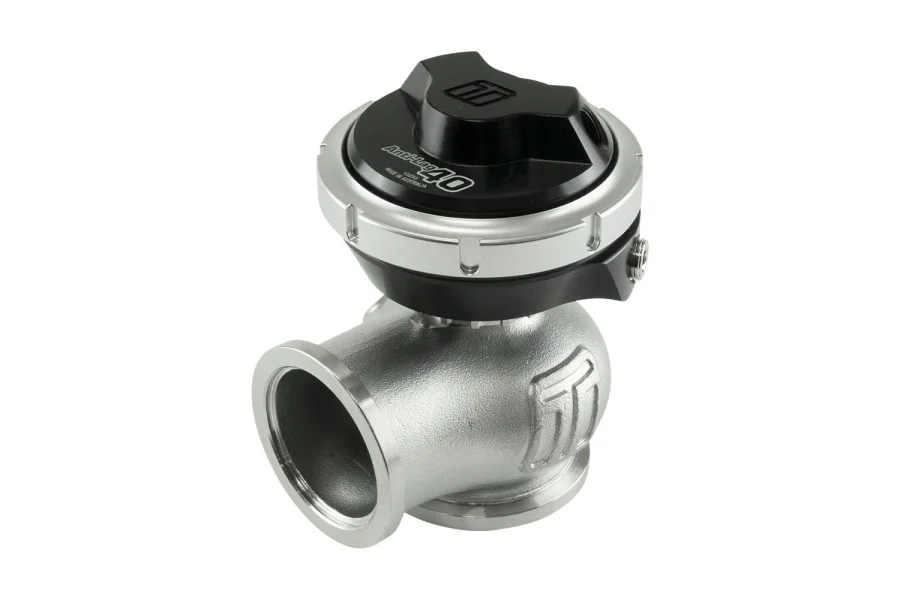

GenV ALV40 (Anti-Lag Valve)

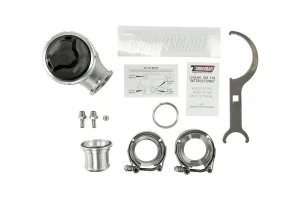

The Turbosmart ALV40 (Anti-Lag Valve) is a fresh air anti-lag bypass valve for motorsport applications. Featuring a 40mm valve diameter and a purpose-designed actuator housing. Multiple fittings are also supplied for ease of fitment and fabrication.




The ALV40 Fresh Air Valve allows for incoming charged fresh air from the turbo to be diverted safely into the exhaust manifold pre-turbine wheel with the throttle at low opening angles to allow for safer spooling of the turbocharger without the potentially damaging throttle-based late combustion event style anti-lag that can induce high engine stresses and break connecting rods.




The ALV is a sealed twin-chamber design, with the top port being the primary control port. The spring is designed to open under vacuum conditions to allow the air to bypass into the exhaust manifold, the lower chamber for twin-port control methods, control the valve irrespective of manifold pressure, and the shaft seal allows for leakproof operation.



Features


Twin Chamber Control


Suitable for Boost or Vacuum


Clockable Actuator Housing


Optional 1-5 port outlet flanges


Nitronic 60 Valve Guide and; High Temp 347 Ss Body


17/7 PH Stainless Steel Springs


Strap Type V-band clamps

Référence	TS-0552-1402
Code EAN	9329677020731
Marque	Turbosmart
Famille	Turbos
Poids colis	1,40 kg
Dimensions colis	150 × 140 × 190 mm
Délai d'approvisionnement	21 jours
Taux de TVA	20 %

Les compatibilités de cette référence ne sont pas encore renseignées. Elle n'est pas universelle pour autant : appelez le Lab pour faire vérifier qu'elle convient à votre voiture.

Aucune référence d'origine n'est encore rattachée à cette pièce. Si vous avez l'ancienne pièce en main, envoyez sa référence à sales@urban-racing.fr, le Lab confirme l'équivalence.
