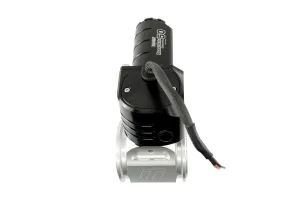

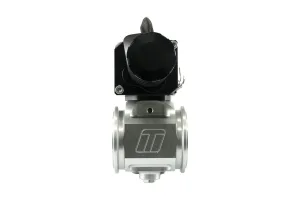

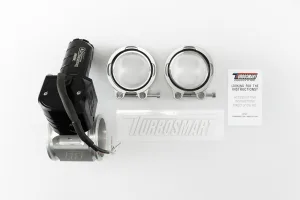

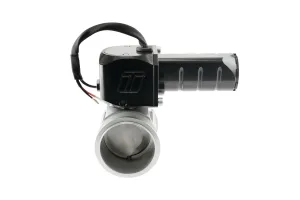

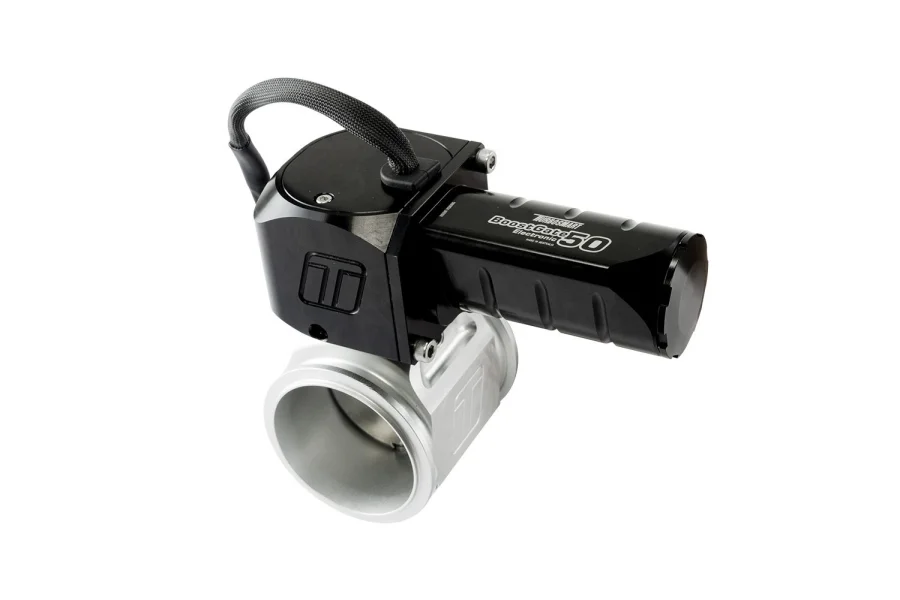

eBG50 Electronic BoostGate 50 Black

The Turbosmart BoostGate 50 is an electronically controlled butterfly-style valve designed for charge pipe boost control. It is manufactured from Billet Aluminum for reduced mass and features the kind of control and flow you expect from the StraightGate series of Turbosmart products.

Unlike a traditional external wastegate, which bypasses gas around the turbine housing aiming to reduce turbocharger shaft speed and effectively, boost levels - Charge Air control is a controlled bleed of the compressed air on the cold side of the turbocharger system. Mounted to the charge pipe, the BoostGate 50 can be used to modulate this air flow directly, rather than the indirect method of traditional control.

Charge-Air Control is specifically suited to applications such as drag racing where turbocharger specifications have already been optimized, and the turbine is not the limiting performance factor. The BoostGate 50 is a zero offset butterfly-styled valve that enables incredible resolution, enormous flow and the kind of boost control required to deliver the perfect pass, every time. Equipped with the Patent Pending Zero-Backdrive gearbox technology to reduce overall power consumption and maximize response, the BoostGate 50 is Engineered to Win!

Features
50mm (1.97in) Butterfly style zero-offset valve
383.9 CFM / 10.87m3 per minute flow
Stainless steel (630) Butterfly and shaft
Billet Aluminium Main Body
360-degree mounting options on V-band
Clock-able actuator positions (2 x 120 Deg options)
Full Electronic Actuation (Dual H-bridge input)
Onboard (0-5v) Analogue Actuator Temperature Sensor
Onboard (0-5v) Analog Valve Position Sensor
Onboard (PWM) Digital Valve Position Sensor
7 Wire Unterminated Flying Lead Loom

Référence	TS-0265-1042
Code EAN	9329677028539
Marque	Turbosmart
Famille	Turbos
Poids colis	1,73 kg
Dimensions colis	220 × 170 × 140 mm
Délai d'approvisionnement	21 jours
Taux de TVA	20 %

Les compatibilités de cette référence ne sont pas encore renseignées. Elle n'est pas universelle pour autant : appelez le Lab pour faire vérifier qu'elle convient à votre voiture.

Aucune référence d'origine n'est encore rattachée à cette pièce. Si vous avez l'ancienne pièce en main, envoyez sa référence à sales@urban-racing.fr, le Lab confirme l'équivalence.
